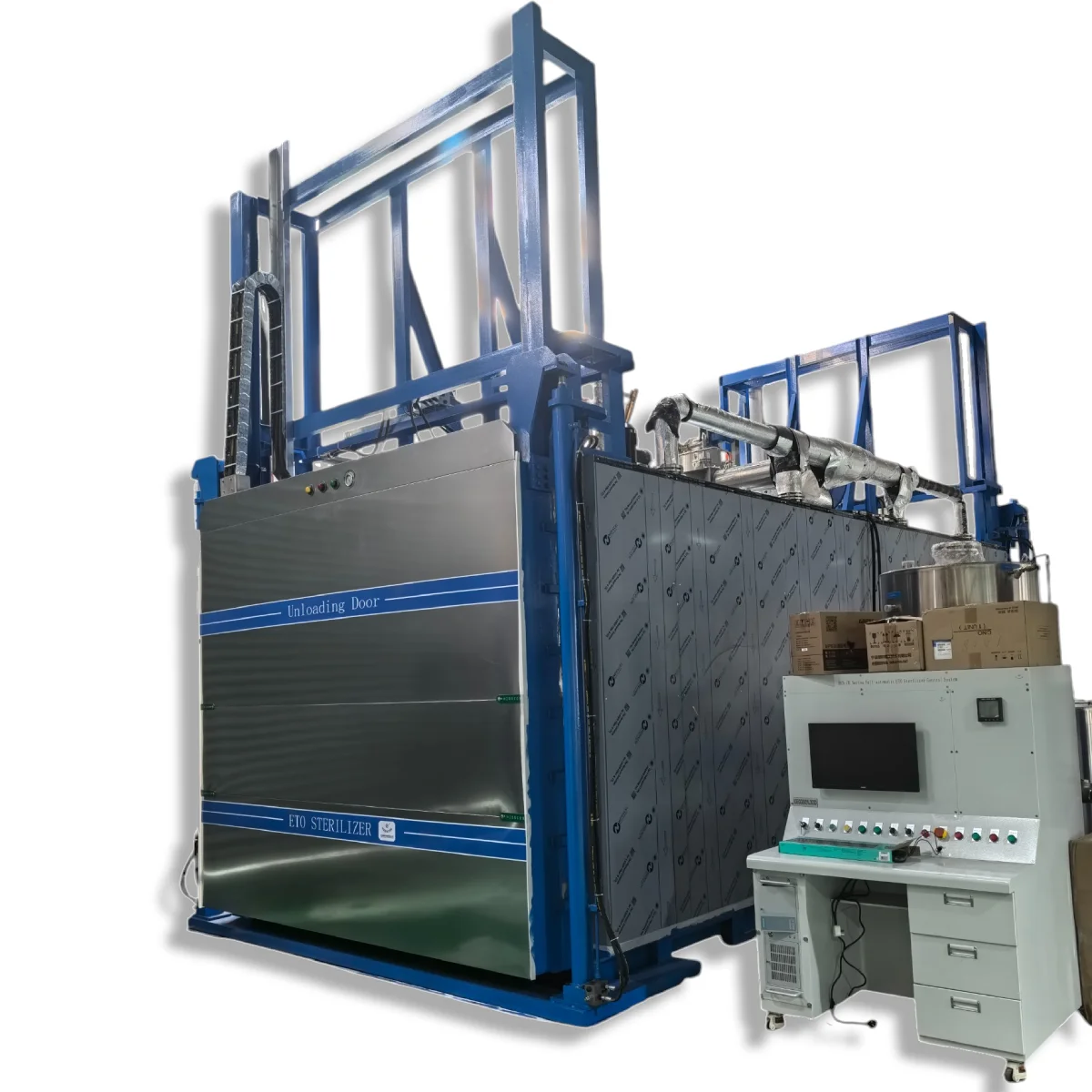

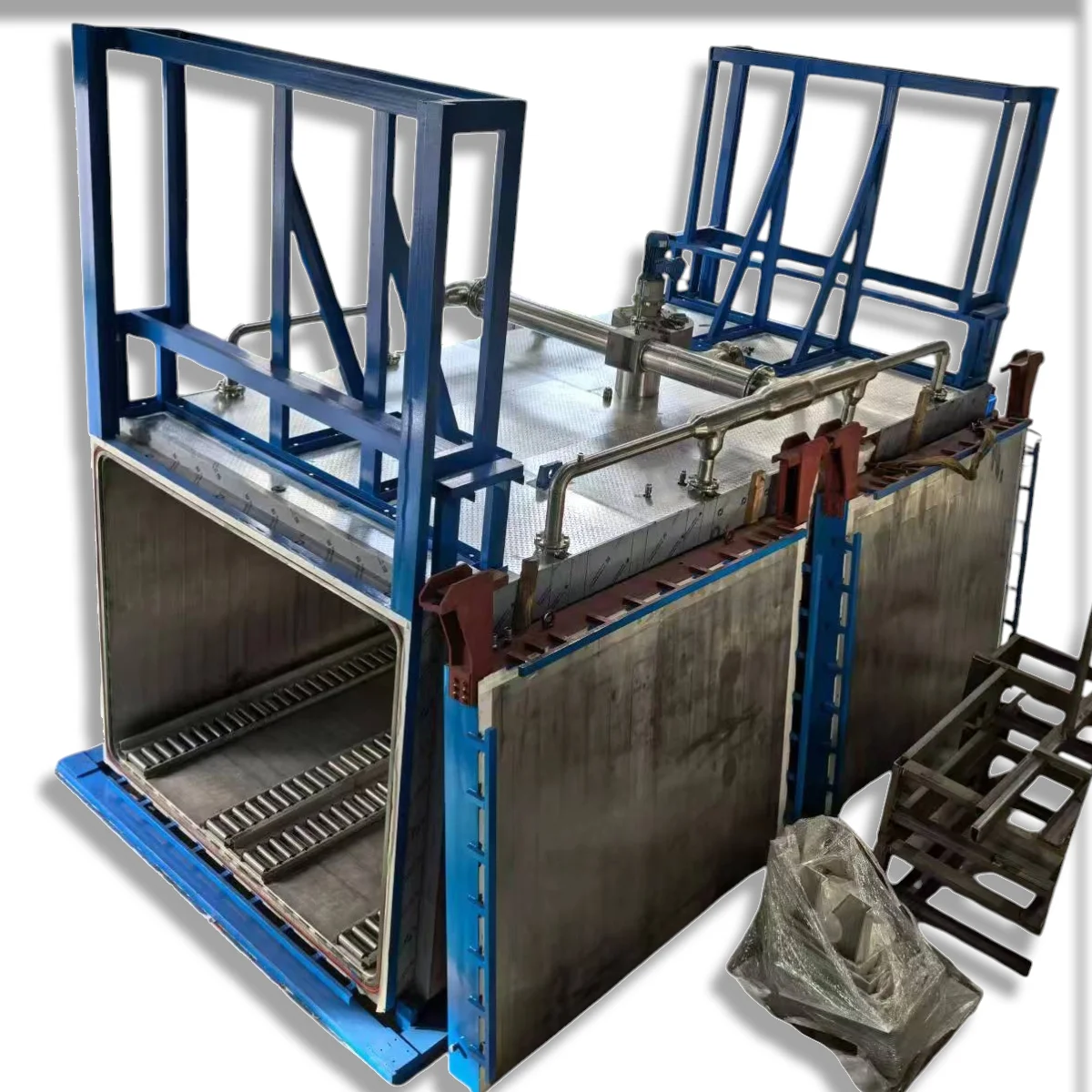

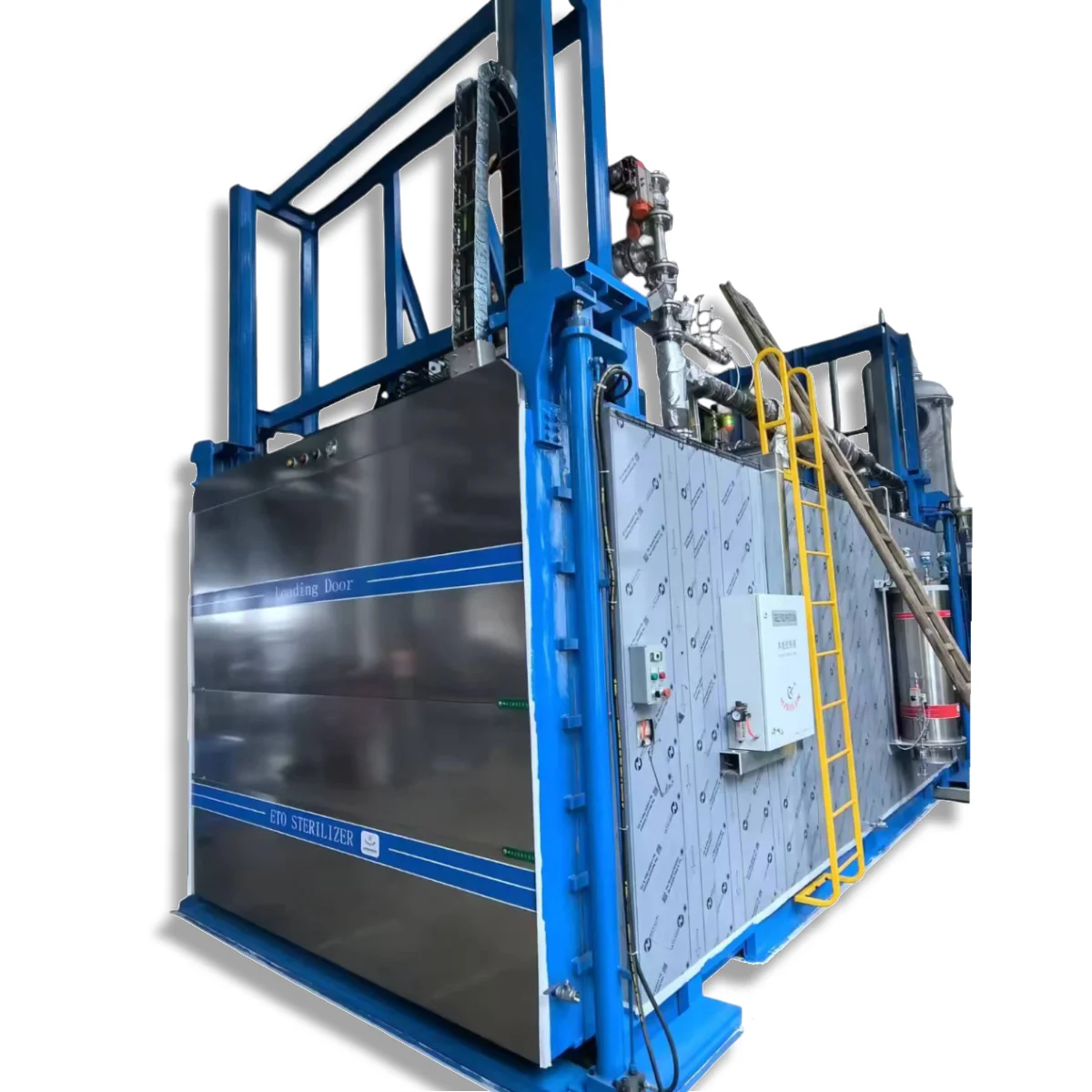

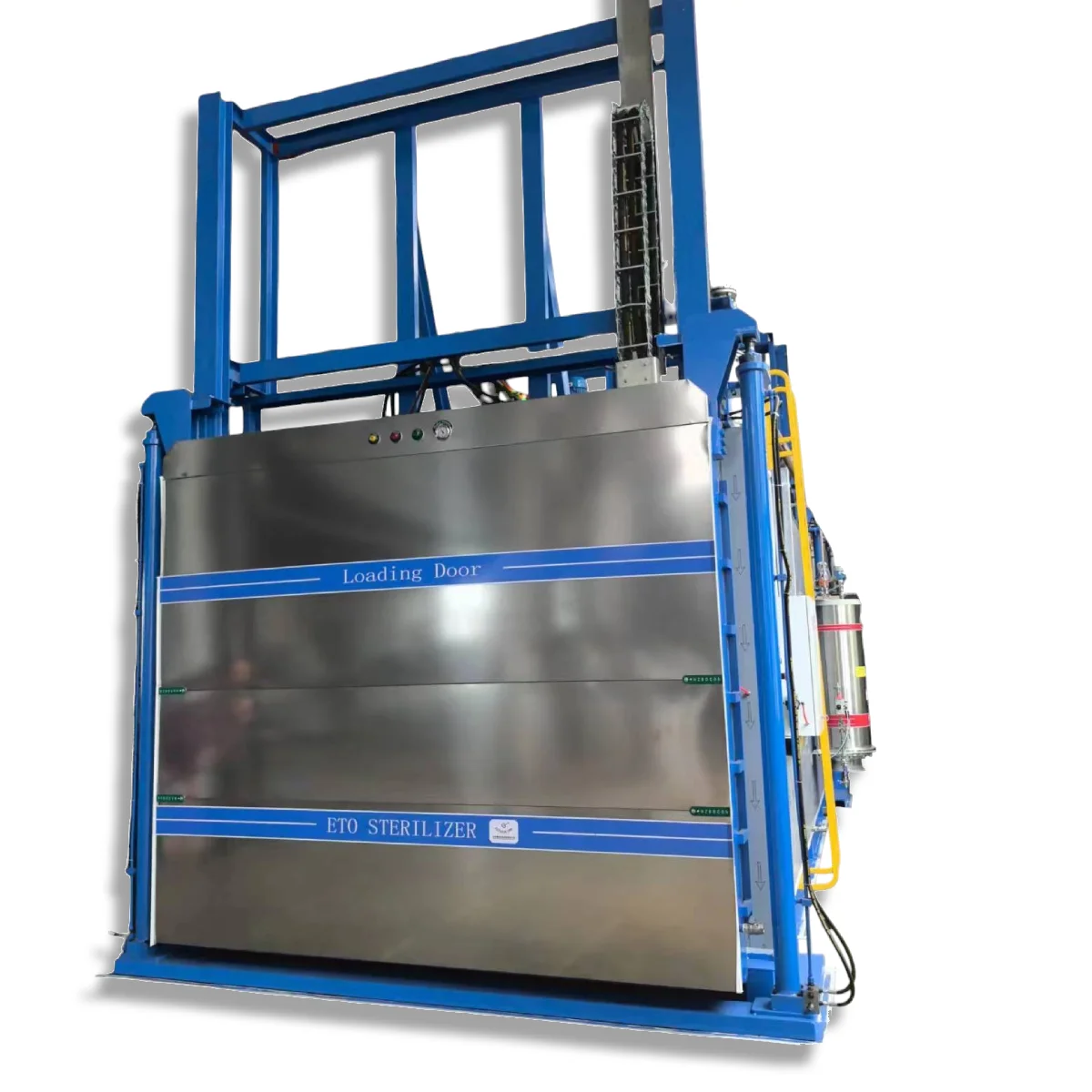

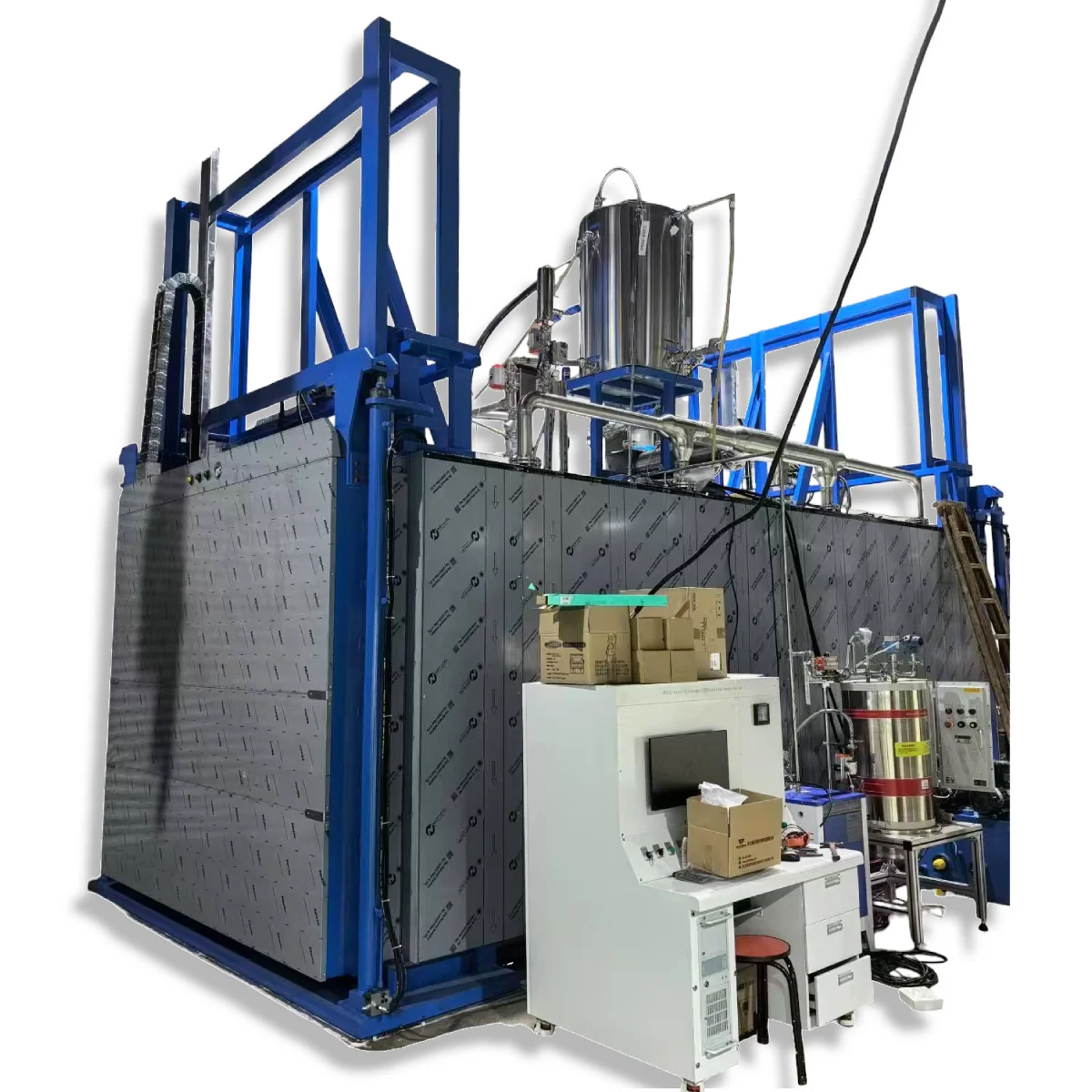

Overall Lifting Door ethylene oxide sterilizer

The ethylene oxide sterilizer machine (Eto sterilizer) was developed and designed by BOCON, with sizes of 1-128m³?1-36 US pallets) (1-44 Euro pallets)       PS: European Pallet Size (1200 x 800 mm) & US Pallet Size (1200 x 1000 mm)

In order to do  ETO sterilization in optimum conditions, we can offer the following services: FAT, SAT, DQ, IQ, OQ, and support for PQ.

Following customer requests, we can supply: Pre-conditioning, Sterilization, Degassing Chambers, EO Scrubber, and EO Energy Recycling.

Category:

Industry ethylene oxide gas sterilizer Turnkey EO Sterilization Project

A turnkey project is a complete project that is designed, built, and tested by a single provider. In the context of ETO sterilization, a turnkey project typically involves designing and building a complete ETO sterilization facility, including :

* ETO sterilizer chamber

* preheating room

* Aeration Room

* Scrubber

* Sterilization conveyor system

* control system cabinet

* local control box

* etc

volumepalletinner sizePneumatic Sliding Door sizePneumatic Revolving Door sizeOverall Lifting Door sizeinnerdoorweight/T
1m³/1400*700*10001750*1270*1520//6mm6mm1t
2m³/1650*1000*12002070*2520*17202000*1570*1720/6mm6mm2t
3.0m³1*(1200*1000）1400*1350*17001820*3220*22201750*1920*22201820*1910*39506mm8mm3t
4.5m³2*(1200*800）2000*1350*17002420*3220*22202350*1920*22202420*1910*39506mm8mm4t
5m³2*(1200*1000）2250*1350*17002670*3220*22202600*1920*22202670*1910*39508mm6mm4.5t
6m³3*(1200*800）2700*1350*17002670*3220*22202600*1920*22202670*1910*39508mm6mm5t
8m³3*(1200*1000）3500*1350*17003920*3220*22203850*1920*22203920*1910*39508mm6mm6t
10m³4*(1200*1000）
5*(1200*800）		4500*1350*17004920*3220*22204850*1920*22204920*1910*39506mm8mm7t
15m³5*(1200*1000）
6*(1200*800）		5500*1350*20005920*3220*25205850*1920*25205920*1910*45508mm8mm9t
20m³7*(1200*1000）7500*1350*20007920*3220*25207850*1920*25207920*1910*45508mm8mm12t
26m³9*(1200*1000）
11*(1200*800）		9600*1350*200010020*3220*25209950*1920*252010020*1910*45508mm8mm14t
28m³10*(1250*1220）12500*1350*170012945*3220*2270//8mm8mm14t
30m³13*(1200*800）11300*1350*200011720*3220*252011650*1920*252011720*1910*45508mm8mm17t
30m³-210*(1200*1000)5600*2700*20006020*5920*25205950*3270*25206020*3260*45508mm8mm16t
35m³15*(1200*800）13000*1350*200013420*3220*252013550*1920*252013420*1910*45508mm8mm23t
35m³-214*(1200*800）6000*2700*22006470*6180*27806470*3410*27806470*3340*50708mm8mm22t
40m³-212*(1200*1000）6650*2700*22007110*6260*27807110*3450*27807110*3380*51308mm10mm23t
48m³12*(1200*1000）12850*1400*270013270*3480*327013200*2050*322013270*2040*60708mm10mm28t
52m³13*(1200*1000）13900*1400*270014320*3320*322014250*1970*322014320*1960*59508mm10mm28t
55m³-214*(1200*1000）7500*2700*27007960*6260*32807960*3450*32807960*3380*61308mm10mm27t
57m³-218*(1200*1000）9650*2700*220010110*6260*278010110*3450*278010110*3380*51308mm10mm28t
63m³-216*(1200*1000）8650*2700*27009110*6260*32809110*3450*32809110*3380*61308mm10mm29t
70m³-218*(1200*1000）9700*2700*270010160*6260*328010160*3450*328010160*3380*61308mm10mm32t
78m³-220*(1200*1000）10750*2700*270011210*6260*328011210*3450*328011210*3380*61308mm10mm35t
86m³-222*(1200*1000）11800*2700*270012260*6180*328012260*3410*328012260*3340*60708mm10mm38t
101m³-232*(1200*1000）17050*2700*220017510*3300*278017510*3300*278017510*3300*50708mm10mm45t
118m³-238*(1200*1000）20200*2700*220020660*6180*278020660*3450*278020660*3380*50708mm10mm49t
